外徑千分尺廣泛應用于外尺寸的精密測量，（0-1000mm）符合GB標準，（1000-3000mm）符合JB標準。
|
|
編 號
|
測量范圍
|
讀數值
|
質 量
|
|

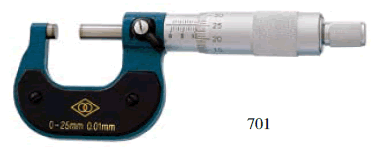

701-01
|
0-25mm
|
0.01mm
|
0.208
|
|
-02
|
25-50mm
|
0.332
|
|
-03
|
50-75mm
|
0.407
|
|
-04
|
75-100mm
|
0.522
|
|
-05
|
100-125mm
|
0.620
|
|
-06
|
125-150mm
|
0.811
|
|
-07
|
0-1in
|
0.001in
|
0.208
|
|
-08
|
1-2in
|
0.332
|
|
-09
|
2-3in
|
0.407
|
|
-10
|
3-4in
|
0.522
|
|
-11
|
4-5in
|
0.620
|
|
-12
|
5-6in
|
0.811
|
|
|
|
|
|
編 號
|
測量范圍
|
讀數值
|
質 量
|
|

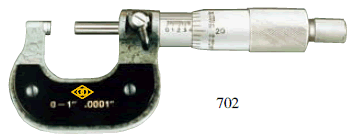

702-01
|
0 -25mm
|
0.001mm
|
0.208
|
|
-02
|
25 -50mm
|
0.332
|
|
-03
|
50 -75mm
|
0.407
|
|
-04
|
75 -100mm
|
0.522
|
|
-05
|
0-1in
|
0.0001in
|
0.208
|
|
-06
|
1-2in
|
0.332
|
|
-07
|
2-3in
|
0.407
|
|
-08
|
3-4in
|
0.522
|
|
-09
|
4-5in
|
0.620
|
|
-10
|
5-6in
|
0.811
|
|
|
 |
|

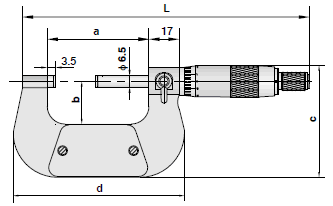

測量范圍
|
a
|
b
|
c
|
d
|
L
|
|
0-25mm
|
32mm
|
24mm
|
54mm
|
62mm
|
123mm
|
|
25-50mm
|
57.3mm
|
32mm
|
71mm
|
97mm
|
156.3mm
|
|
50-75mm
|
82.3mm
|
44.5mm
|
85.5mm
|
128mm
|
181.3mm
|
|
75-100mm
|
107mm
|
57.0mm
|
104mm
|
155mm
|
206.3mm
|
|
100-125mm
|
132.3mm
|
70mm
|
119mm
|
194mm
|
231.3mm
|
|
125-150mm
|
157.3mm
|
82mm
|
136mm
|
227mm
|
256.3mm
|
訂貨說明：請按產品名稱的測量范圍及讀數值的編號定貨。
例：外徑千分尺75－100mm 0.01mm，標注為：701－04
|
|
編 號
|
測量范圍
|
讀數值
|
質 量
|
|

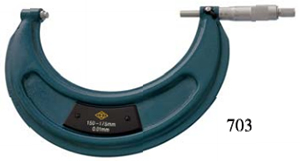

703-01
|
150 -175mm
|
0.01mm
|
0.703
|
|
-02
|
175 -200mm
|
0.832
|
|
-03
|
200 -225mm
|
0.923
|
|
-04
|
225 -250mm
|
1.030
|
|
-05
|
250 -275mm
|
1.098
|
|
-06
|
275 -300mm
|
1.244
|
|
-07
|
6-71in
|
0.001in
|
0.692
|
|
-08
|
7-8in
|
0.821
|
|
-09
|
8-9in
|
0.912
|
|
-10
|
9-10in
|
1.019
|
|
-11
|
10-11in
|
1.087
|
|
-12
|
11-12in
|
1.233
|
|
 |
|
編號
|
測量范圍
|
讀數值
|
備注
|
|

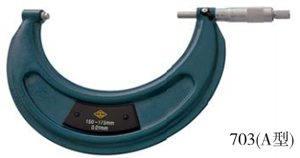

703-01(A 型)
|
150-175mm
|
0.01mm
|
硬質合金量面
|
|
-02(A 型)
|
175-200mm
|
|
-03(A 型)
|
200-225mm
|
|
-04(A 型)
|
225-250mm
|
|
-05(A 型)
|
250-275mm
|
|
-06(A 型)
|
275-300mm
|
|
 |
|
編 號
|
測量范圍
|
讀數值 |
質 量
|
|
704-01
|
300 -400mm
|
0.01mm |
1.9
|
|
-02
|
400 -500mm
|
2.2
|
|
-03
|
500 -600mm
|
2.9
|
|
-04
|
600 -700mm
|
3.6
|
|
-05
|
700 -800mm
|
4
|
|
-06
|
800 -900mm
|
4.7
|
|
-07
|
900 -1000mm
|
4.9
|
|
 |
|
編 號
|
測量范圍
|
H(mm)
|
L(mm)
|
|
704-01
|
300 -400mm
|
217
|
407
|
|
-02
|
400 -500mm
|
267
|
507
|
|
-03
|
500 -600mm
|
317
|
607
|
|
-04
|
600 -700mm
|
367
|
707
|
|
-05
|
700 -800mm
|
417
|
807
|
|
-06
|
800 -900mm
|
467
|
907 |
|
-07
|
900 -1000mm
|
517
|
1007
|
|
 |
