編號
|
公稱直徑 |
規格 |
精度
|
質量
|

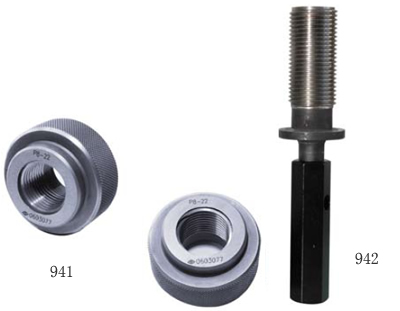

| 941 |
12.7 (1/2) |
P8-13 |
2A
|
0.1530
|
| 15.9 (5/8) |
P8-16 |
0.2510 |
| 19.1 (3/4) |
P8-19 |
0.2350 |
| 22.2 (7/8) |
P8-22 |
0.2750 |
| 25.4 (1) |
P8-25 |
0.4640 |
| 28.6 (1 1/8) |
P8-29 |
0.4600 |
| 12.7 (1/2) |
P6-13 |
0.1530 |
| 15.9 (5/8) |
P6-16 |
0.2520 |
| 19.1 (3/4) |
P6-19 |
0.2360 |
| 22.2 (7/8) |
P6-22 |
0.3620 |
| 25.4 (1) |
P6-25 |
0.4660 |
| 28.6 (1 1/8) |
P6-29 |
0.4610 |
| 12.7 (1/2) |
B1-13 |
0.1530 |
| 15.9 (5/8) |
B1-16 |
0.2510 |
| 19.1 (3/4) |
B1-19 |
0.2350 |
| 22.2 (7/8) |
B1-22 |
0.2750 |
| 25.4 (1) |
B1-25 |
0.4640 |
| 28.6 (1 1/8) |
B1-29 |
0.4600 |
| 12.7 (1/2) |
B5-13 |
0.1530 |
| 15.9 (5/8) |
B5-16 |
0.2520 |
| 19.1 (3/4) |
B5-19 |
0.2360 |
| 22.2 (7/8) |
B5-22 |
0.3620 |
| 25.4 (1) |
B5-25 |
0.4660 |
| 28.6 (1 1/8) |
B5-29 |
0.4610
|
|
|
編號
|
公稱直徑 |
規格 |
精度
|
質量
|
| 942 |
12.7 (1/2) |
P7-13 |
2B
|
0.1440
|
| 15.9 (5/8) |
P7-16 |
0.2250 |
| 19.1 (3/4) |
P7-19 |
0.3150 |
| 22.2 (7/8) |
P7-22 |
0.4290 |
| 25.4 (1) |
P7-25 |
0.6700 |
| 28.6 (1 1/8) |
P7-29 |
0.9530 |
| 12.7 (1/2) |
P5-13 |
0.0904 |
| 15.9 (5/8) |
P5-16 |
0.1460 |
| 19.1 (3/4) |
P5-19 |
0.1857 |
| 22.2 (7/8) |
P5-22 |
0.2375 |
| 25.4 (1) |
P5-25 |
0.3435 |
| 28.6 (1 1/8) |
P5-29 |
0.4861 |
| 12.7 (1/2) |
B2-13 |
0.1018 |
| 15.9 (5/8) |
B2-16 |
0.1538 |
| 19.1 (3/4) |
B2-19 |
0.2097 |
| 22.2 (7/8) |
B2-22 |
0.2775 |
| 25.4 (1) |
B2-25 |
0.4338 |
| 28.6 (1 1/8) |
B2-29 |
0.6143 |
| 12.7 (1/2) |
B6-13 |
0.0565 |
| 15.9 (5/8) |
B6-16 |
0.0814 |
| 19.1 (3/4) |
B6-19 |
0.0964 |
| 22.2 (7/8) |
B6-22 |
0.1296 |
| 25.4 (1) |
B6-25 |
0.1961 |
| 28.6 (1 1/8) |
B6-29 |
0.2654
|
|
